Key Features
Boiler pipes are high-quality steel tubes designed for high-temperature and high-pressure applications in boilers, heat exchangers, superheaters, and power generation systems. Manufactured from premium carbon steel or alloy steel, they provide excellent heat resistance, pressure-bearing capacity, and durability. Available in seamless and welded types, boiler pipes comply with international standards and are widely used in power plants, petrochemical facilities, industrial boilers, and energy projects requiring safe and efficient steam and fluid transportation.
Certified:
Our boiler pipes are manufactured in accordance with internationally recognized standards, including ASTM, ASME, EN, DIN, and GB specifications.
Application:
Boiler pipes are specifically designed for high-temperature and high-pressure service in steam generation and heat transfer systems. They are widely used in thermal power plants, industrial boilers, petrochemical facilities, refineries, and manufacturing industries where reliable performance under extreme operating conditions is essential.
In power generation plants, boiler pipes are used to transport high-pressure steam, feedwater, and hot fluids between boilers, superheaters, economizers, and heat exchangers. Their excellent heat resistance and mechanical strength ensure stable operation, improved energy efficiency, and a long service life under continuous high-temperature conditions.
In the petrochemical and chemical industries, boiler pipes are applied in process heating systems, pressure vessels, heat exchangers, and steam distribution networks. Their superior resistance to pressure, thermal stress, and corrosion helps maintain safe and efficient production processes while reducing maintenance requirements.
Boiler pipes are also widely used in industrial manufacturing facilities, including food processing, textile production, paper mills, pharmaceutical plants, and sugar factories, where steam is required for heating, sterilization, drying, and other production processes.
Manufactured in seamless or welded forms and available in a wide range of sizes, wall thicknesses, and steel grades, boiler pipes can meet diverse engineering requirements. Produced under strict quality control and comprehensive testing procedures, our boiler pipes deliver outstanding reliability, excellent mechanical performance, and long-term durability, making them an ideal solution for high-pressure and high-temperature applications across the global energy and industrial sectors.
Specification:
| Item | Technical Specifications &Ranges |
| Outer Diameter (OD) | 6.0 mm to 219.1 mm |
| Wall Thickness (WT) | 1.0 mm to 28.0 mm (SCH40, SCH80, SCH160, XXS, etc.) |
| Length Range | • Single Random Length (SRL):5.8m / 6.0m |
| • Double Random Length (DRL):11.8m / 12.0m | |
| • Custom Length:Max up to 24 meters (for U-tubes/Serpentine coils) | |
| Manufacturing Process | Seamless:Cold Drawn / Hot Rolled |
| Testing Requirements | 100% Hydrostatic Test, Eddy Current Test (ET), Ultrasonic Test (UT), Flattening & Flaring Test, Mechanical Tests |
Standard:
| Standard Organization | Standard No. / Grade | Material Type | Typical Applications |
| ASME / ASTM | SA-192 / A192 | Carbon Steel | High-pressure boilers, superheaters, and safe ends. |
| SA-210 / A210 (Gr. A1, C) | Medium-Carbon Steel | Boiler tubes, boiler flues, superheater flues. | |
| SA-213 / A213 (T11, T22, T91) | Alloy / Stainless Steel | Supercritical power plant superheaters and repeaters. | |
| EN (European Standard) | EN 10216–2 (P235GH, 16Mo3) | Non-alloy &Alloy Steel | Seamless steel tubes for pressure purposes (elevated temp). |
| JIS (Japanese Standard) | JIS G3461 / G3462 (STB340) | Carbon &Alloy Steel | Steel tubes for exchanging heat on boilers and exchangers. |

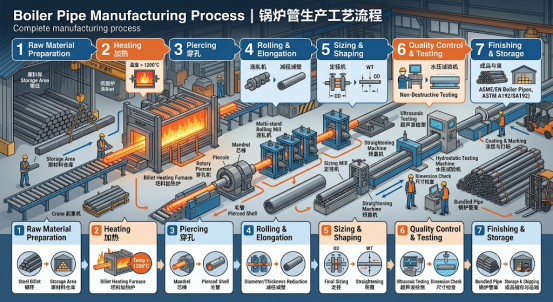

Process:

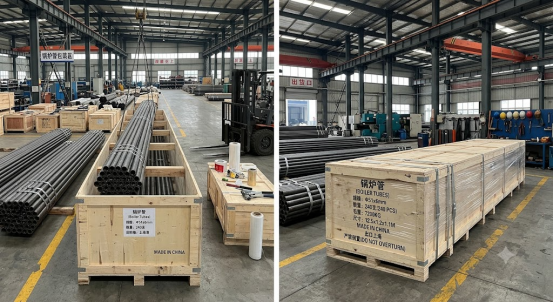

Packing:
